Sleeve Type Metal Expansion Joint
Sleeve Type Metal Expansion Joint

Sleeve Type Metal Expansion Joint

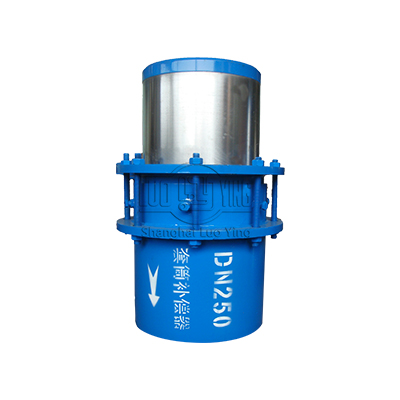

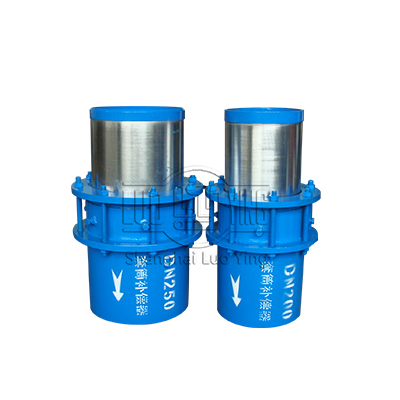

  • [Name]: Sleeve Type Metal Expansion Joint
  • [PN]: 0.6-2.5Mpa
  • [Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc
  • [Material]: SS304, 316, Q235 etc.
Send MessageChat Online

Overview

Slide Sleeve Type Expansion Joint are a very compact and easy to install product, used for absorbing the expansion and contraction movements of a pipeline system. The product has been perfectly designed and developed for utmost customer satisfaction. We are also well equipped to cater the customer's specific requirements. These Slide Sleeve Type Expansion Joint are made out of high grade materials, sourced from reliable vendors, ensuring high quality, reliability, durability and versatility. The product along with our prompt services helps us to be the preferred supplier amongst our customers.It is a highly safe structure.A large amount of expansion and contraction can be taken.
No need to lubricate.ALL SUS products can also be used for water supply.




Features

 Structural characteristic:

Mainly include the sleeve tube (core), shell, sealing materials, etc,to compensate the axial expansion of the pipe and
 the axial rotation at any angle.With the characteristics of small volume , large amount of compensation and suitable
for hot water, steam, oil medium,move by sliding between the sliding sleeve and outside sleeve, Finally achieving the
compensation of the thermal expansion.


Salient Features:

Designed to counterbalance large movements at high pressures
Rugged construction and ease of installation
Excellent pressure and temperature range
Suitable for industrial oil & chemical piping, irrigation piping systems, sewage treatment, and more

Specification

Nominal diameter

Expansion amoung
△1max

Outer Diameter

GSXW Model

Diameter Max

Installation length

25

150

32

116

1250

32

150

28

124

1250

40

150

45

136

1250

50

200

57

150

1420

65

200

73

172

1420

70

200

76

178

1420

80

200

89

194

1420

100

250

108

24

1550

125

250

133

274

1580

150

250

159

310

1580

200

250

219

390

1650

250

300

273

466

1910

300

300

325

558

1910

350

300

377

628

1920

400

350

426

708

2090

500

400

530

856

2410

600

400

630

996

2420

700

400

720

134

2420

800

450

820

1282

2630

900

450

920

1415

2630

1000

450

1020

1560

2650

Note：When the working pressure is not 1.6MPa，the force of friction is Pc/1.6×PN
