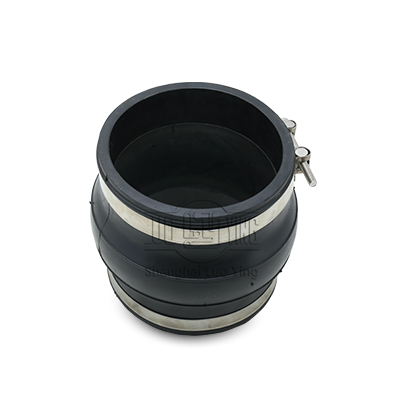

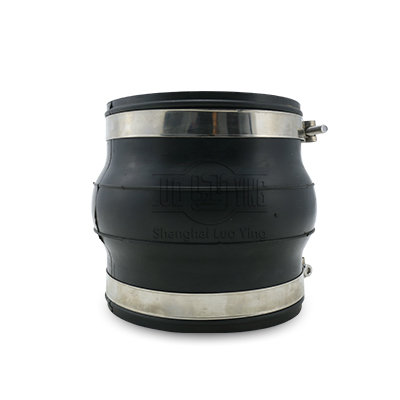

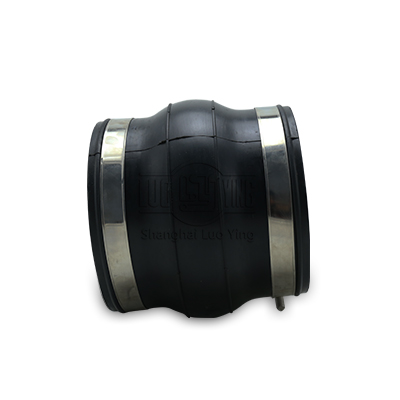

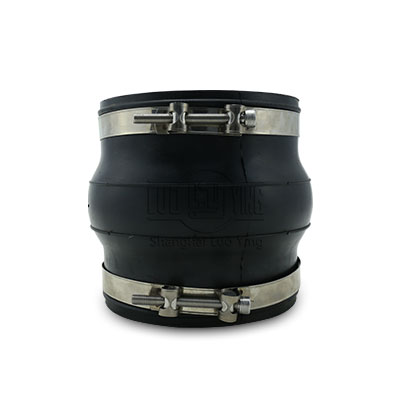

Clamp rubber coupling

[Name]: Clamp Flexible Rubber Joint
[PN]: 0.6~2.5Mpa
[Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc.
[Material]: NR, NBR, CR, EPDM, PTFE etc.
[Certification]: ISO9001：2008
[Products]: Clamp Flexible Joint, Flexible Rubber Joint

+86-15000288066

sales@luoyingsh.com

Send Message Chat Online

Overview

Clamp Flexible Joint is also called Flexible Rubber Joint, flexible joint, rubber coupling, flexible rubber joint, rubber soft connection. Clamp Flexible Rubber Joint is flexible coupling of metal pipe, composed by inner layer,Nylon cord fabric enhanced, outer layer composite rubber ball and metal flange. Working pressure is higher than ordinary flexible rubber joint. The product has the characteristics of high pressure resistance, good flexibility, big displacement, balance pipe deviation, absorb vibration, reduce noise, convenient for installation.

Clamp flexible rubber joint is composed of inner layer, polyamide fiber cord fabric, outer layer rubber and lapped joint flange, it have many advantage such as high temperature and pressure resistance, high-flexibility reduce structural noise strong shock absorption and easy installation, extensively used in the water supply, drainage cyclic water air conditioning paper making petroleum chemical industry, pump and duct fan pipeline system.

The expansion joint pipe manufacture is manufactured through welding or metal casting, and the loosing part is sealed by echelon ring rubber. Operated by gland and bolt and based on the principle of rubber’s elastic deformation under pressure, the seal ring will be deformed and static seal will be done between joint body and expansion pipe wall.

Features

1.Clamp Flexible Rubber Joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement axial expansion, etc.

2.According to different materials, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive

resistance, oil resistance, heat resistance, adapt to many mediums and different environment.

3.Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.

4.If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.

5. If pipeline pressure is high, use bolt connect the flange both ends.

6.Flange standard: ANSI, JIS, BS, DIN, GB, ect.

Specification

Item/ Model	JGD-1	JGD-2	JGD-3
Working pressure Mpa(kgf/cm²)	1．0(10)	1．6 (16)	2．5 (25)
Explosive pressure Mpa (kgf/cm²)	2．0 (20)	3．0 (30)	4．5 (45)
Vacuum Kpa (mm/Hg)	53．3 (400)	86．7 (650)	100 (750)
Applicable temperature ℃	-15℃~+115℃ special up to -30℃~+250℃
Applicable medium	compressed air, water, sea water, hot water, oil, acid, etc

Technical parameter:

Nominal Diameter		Length(mm)	Flange thickness	No. of Bolts	Axial displacement(mm)		Horizontal displacement	Deflection angle
mm	Inch	Length(mm)	Flange thickness	No. of Bolts	Extension	Compression	Horizontal displacement	Deflection angle
32	1.25	95	16	4	6	9	9	15
40	1.5	95	18	4	6	10	9	15
50	2	105	18	4	7	10	10	15
65	2.5	115	20	4	7	13	11	15
80	3	135	20	4	8	15	12	15
100	4	150	22	8	10	19	13	15
125	5	165	24	8	12	19	13	15
150	6	180	24	8	12	20	14	15
200	8	210	24	8	16	25	22	15
250	10	230	26	12	16	25	22	15
