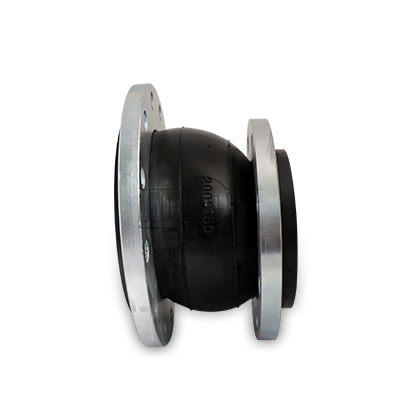

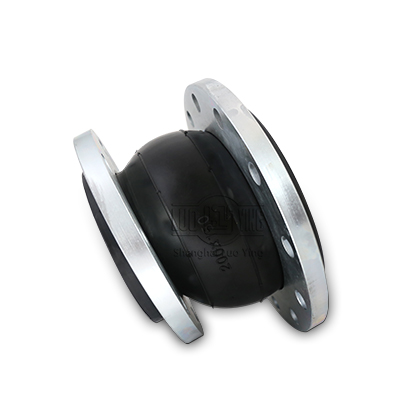

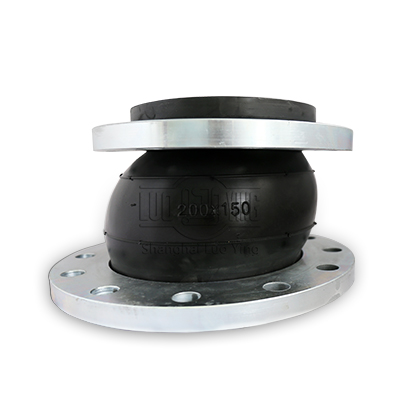

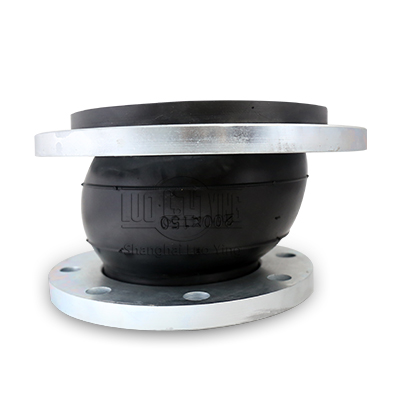

Eccentric rubber coupling

[Name]: Eccentric rubber expansion joint
[PN]: 0.6-2.5Mpa
[Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc.
[Material]: NR, NBR, CR, EPDM, PTFE etc.
[Certification]: ISO9001:2008

+86-15000288066

sales@luoyingsh.com

Send Message Chat Online

Overview

Application:

Reducing flexible rubber joint is widely used in the field of chemical industry, construction, supply water, sewage drainage, petroleum, light and heavy industry, sanitation, plumbing, electricity and other fundamental engineering.

The inner seamless high-pressure rubber joint is developed by us which prevents corrosive medium from etching the inner wall of the rubber joint in high temperature, acid, alkali and oil resistance pipeline, thereby it also can extend its service life span.Structural noise transmission can be reduced with the restrict and flange non-parallelism.

Reducing flexible rubber joint is consist of fabric reinforced and metal flange loose joint.

It has the characteristics of compact structure,light weight,high flexibility,easy installation,long service life.

Features

Expansion joints are specially engineered products inserted in a rigid piping system to achieve one or more of the following:

Absorb movement

Improved thermal stability

Relieve system strain due to thermal change, load stress, pumping surges, wear or settling

Reduce mechanical noise

Compensate for misalignment

Eliminate electrolysis between dissimilar metals

The range of our engineering emphasis extends from the selection of the fabric used for reinforcement to the choice of materials used in actual expansion joint construction. Rigid laboratory and field tests of rubber expansion joints are what back up our assurances of long life and reliable service. An important word on safety: all rubber expansion joints carry safety ratings exceeding product specifications in such areas as pressure and movement. The nonmetallic expansion joints and flexible couplings are ideally suited for hundreds of applications in a wide range of industries, including:

Power Generation

Pulp and Paper

Chemical Processing

Water/Waste Water

Marine

Mining

Heating, Ventilating, and Air Conditioning

Expansion Joints offer superior performance, reliability, and service life. This in turn improves plant safety, increases the mechanical integrity of equipment, and allows customers to gain a competitive advantage in the marketplace.

Specification

Material of each components

No.	Part	Material
1	Body	NR, CR, IIR), NBR, FKM, EPDM
2	Inner & Outer Rubber	NR, CR, IIR, NBR, FKM, EPDM, PTFE
3	Body Carcass	Nylon cord fabric
4	Reinforcing Ring	Multi-strand coppering steel wire
5	法兰 Flange	Cast and forged carbon steel Q235, Stainless steel(201, 304, 316, 321), Plastic(CPVC, PVDF, PPH, UPVC, RPP)

Technical arameters

Item \|Medol	KYT(DN50~300)	KYT(DN350~600)	A. If media is oil, acid or alkali. B. If special requirements for working temperature C. If OEM orders with drawings or samples D. Please Inform us about above when ordering
Woring pressure Mpa	1.0	0.6
Burst Pressure Mpa	1.8	1.5
Vacuum Kpa	86.7	53.3
Applicable Temperature	-20℃~+115℃(-30℃~+250℃ under special conditions)
Applicable Medium	Air, compressed air, water, sea water, oil, acid, alkali, etc.
Note: the materials of main parts are the same with those of KXT type

Main date

Nominal Diameter （mm）	LengthL(mm)	Axial displacement (mm)		Haorizontal isplacement(mm)	Angular deflection(a1+a2)°
Nominal Diameter （mm）	LengthL(mm)	伸长Extension	压缩Compression	Haorizontal isplacement(mm)	Angular deflection(a1+a2)°
40×25	115	7	12	10	10
40×32	125	7	12	10	10
50×40	180	7	12	10	10
65×40	180	7	12	10	10
65×50	180	7	12	10	10
80×50	180	7	12	10	10
80×65	180	7	12	10	10
100×50	180	7	12	10	10
100×65	180	7	12	10	10
100×80	180	8	14	12	10
125×65	200	8	14	12	10
125×80	200	8	14	12	10
125×100	200	10	20	12	10
150×50	200	10	20	12	10
150×65	200	10	20	12	10
150×80	200	10	20	12	10
150×100	200	10	20	12	10
150×125	200	12	20	14	10
200×80	200	12	20	14	10
200×100	200	12	20	14	10
200×125	200	12	20	14	10
200×150	200	12	20	14	10
250×125	220	12	20	14	10
250×150	220	12	20	14	10
250×200	220	12	20	20	10
300×125	220	14	22	20	10
300×150	220	14	22	20	10
300×200	220	14	22	20	10
300×250	220	14	22	20	10
350×150	240	14	22	20	10
350×200	240	14	22	20	10
350×250	240	14	22	20	10
350×300	240	14	22	20	10
400×200	240	14	22	20	10
400×250	240	14	22	20	10
400×300	240	14	22	20	10
400×350	240	14	22	20	10
450×300	240	14	22	20	10
450×350	240	14	22	20	10
450×400	240	14	22	20	10
500×350	240	14	22	20	10
500×400	240	14	22	20	10
500×450	240	14	22	20	10
Notes:1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc. 2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints. 3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges.
