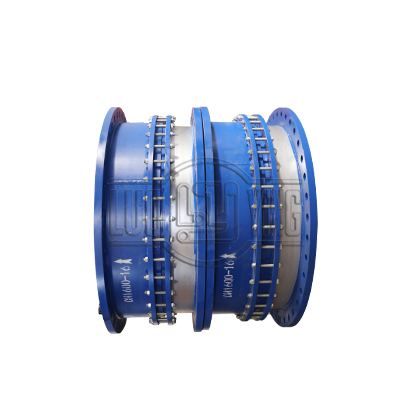

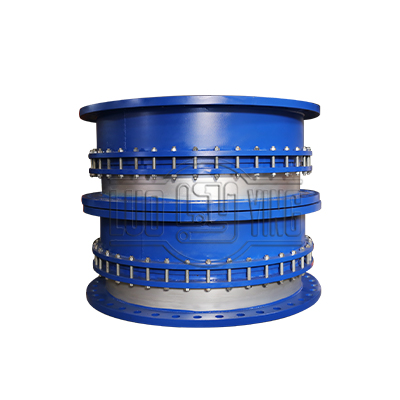

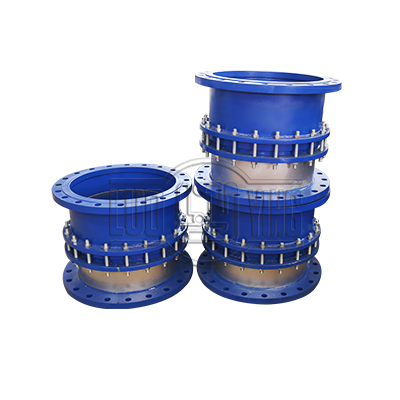

CS Heat pipe expanders

Overview

Thermodynamic compensator is mainly applied axial compensation, also has superior bending capacity, so I do not take into account the impact of sink pipes. Buried corrugated sleeve of compensation under the protection of housing and orientation compensation for the realization of freedom stretching, and other properties the same as ordinary bellows.

When install ,platen bolt before installation, lengthen compensator to installation length and then screw down bolt without pressure bias.The compensator shall be installed between the two steady rests of straight segment of pipeline to guarantee normal compensation of compensator.

Features

Absorb large axial displacement between straight tube and support frame
Small horizontal displacement
To resolve minor deviation because of piping connection and eliminate the pipeline residual stress
Easy to clean and maintenance

Specification
